5m Telescopic Handler

A telescopic handler, or telehandler, is a machine widely used in the agriculture and construction industry. It is similar in appearance and function to a forklift, with the increased versatility of a single telescopic boom that can extend forwards and upwards from the vehicle. At the end of the boom, the operator can fit one of several attachments, such as a bucket, pallet forks, muck grab, or lift table.

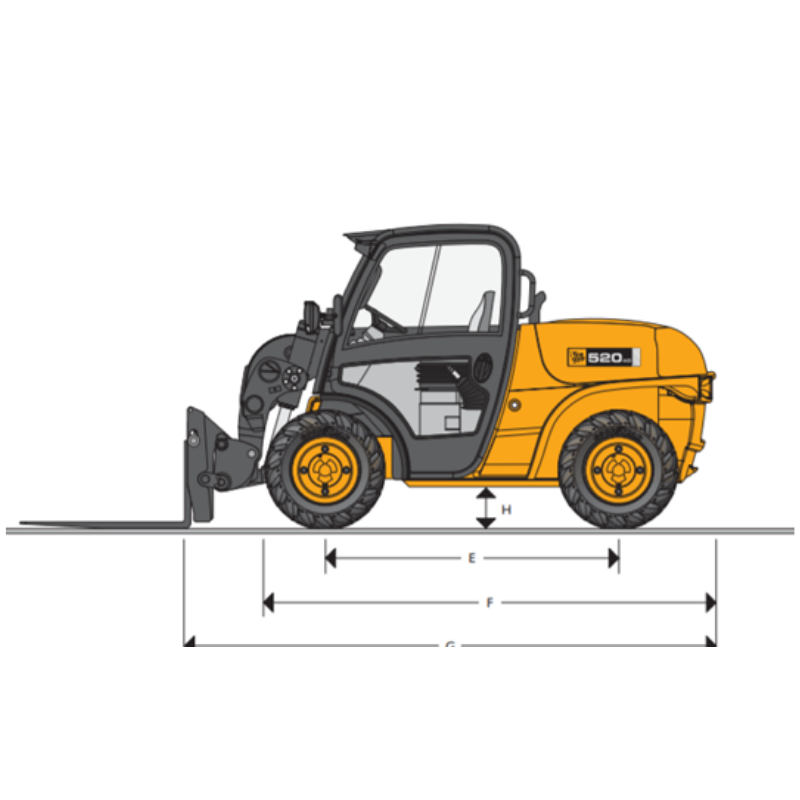

Machine Model 520-50

 M (fit-in)

Overall Height                                   1.97 (6-6)

Ground Clearance                            0.22 (0-11)

Overall Width (Over Tyres)           1.56 (5-1)

Inside Width                                      0.92 ( 3-0)

Outside Turn Radius                        3.05 (10-0)

Front Track                                        1.29 ( 4-3)

Carriage Roll Back Angle                38 degrees

Wheelbase                                          1.90 ( 6-3)

Carriage Dump Angle                      33 degrees

Overall Length To Front                  2.92 (9-6)

Weight Kg  (lb)                                  4400 (9700)

Overall Length To Front Carriage      3.38 ( 11-1)

Tyres                                    10×16.5 10 ply
